Designed for use with Lockwood 3570 Series Mortice Locks; Latches and Push and Pull doors.
Available in range of finishes and can be fitted to varying thickness of doors

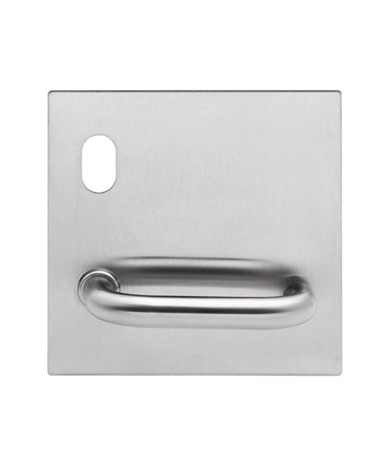

The 200 Series Door Furniture is 162mm square with square corners. Concealed fixed plates have studs with internal threads located in each corner, visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.
Materials
Aluminium, brass and stainless steel
Door Thickness
35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208.
Note: When using flush pulls back to back the minimum door thickness is 40mm.
Finishes
Standard
Non Standard
